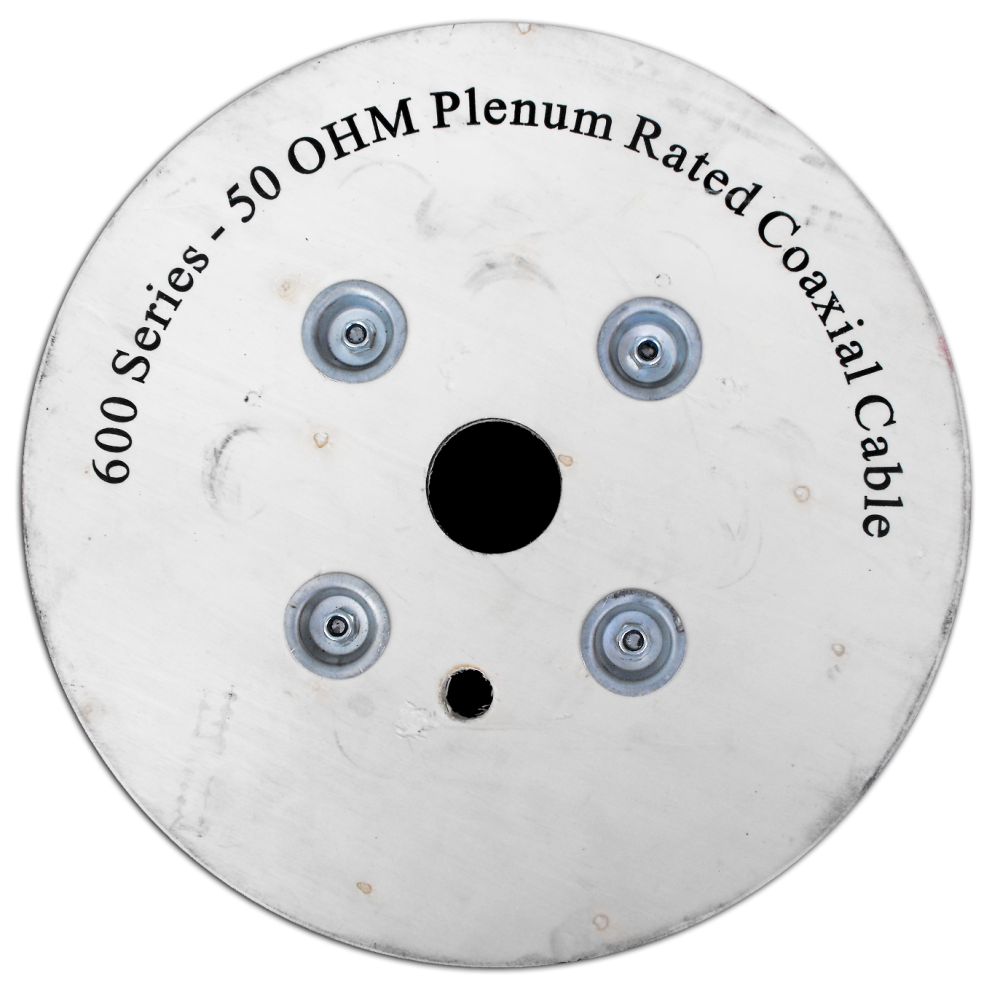

JDTECK’s 600 Series Plenum Rated low loss coaxial cable is perfect for the back-haul of any in-building wireless application requiring plenum rated / fired retardant raiser coax. These include; WLL, GPS, WLAN, WISP, WiMax, SCADAA, LMR, Cellular, Paging, PCS, LTE and AWS applications. Our cable is constructed of a UV resistant LSZH jacket, providing durability and protection from harsh elements and is designed for any DAS application requiring high-quality cabling. There are no manufacturer brand markings on the cable or spool.
| Material | Diameter (inch / mm) | |||
| Inner Conductor | Copper Clad Aluminum | 0.176″ / 4.47mm | ||
| Dielectric | Physical Foam Polyethylene | 0.455″ / 11.56mm | ||
| First Shield | Aluminum Foil & Tinned Copper Braid | 0.492″ / 12.45mm | ||
| Jacket | White PVC Plenum & UV Rated | 0.590″ / 15.00mm | ||
Mechanical |
||||
| Impedance (Ohms) | 50 | |||
| Minimum Bend Radius (Inch) | 2.953″ | |||
| Outer Diameter | 15mm / 0.59″ | |||
| Capacitance(pF/m) | 23.4 pF/ft | |||
| Velocity of Propagation (%) | 87.0 | |||
| Screening Effectiveness (dB) | ≥90 | |||
| Operating Temperature | -40° F to +185° F | |||
Attenuation |
||||
| Operating Frequency (Mhz) | Attenuation / (100ft) | |||
| 30 | 0.42 | |||
| 50 | 0.55 | |||
| 150 | 1.0 | |||
| 220 | 1.2 | |||
| 450 | 1.7 | |||
| 900 | 2.5 | |||
| 1500 | 3.3 | |||
| 1800 | 3.7 | |||
| 2000 | 3.9 | |||
| 2500 | 4.4 | |||
| 5800 | 7.3 | |||
