This multi-band Log Periodic Yagi antenna can be used either as a donor antenna or a service antenna depending on your application. With its 65° beam-width it is ideal for capturing an input signal from multiple towers in a specified direction. It performs exceptionally well with all protocols. The pigtail of this antenna is a high performance grade coax.
All JDTECK’s antennas are tested for optimal return loss before shipping.
| Frequency Range | 698-960 / 1710 – 2700 MHz | |
| Gain | 9.5 / 11 dBi | |
| Polarization | Vertical (Linear) | |
| Front-to-back Ratio | ≤ 23dB | |
| Vertical Beam-width | 90° | |
| Horizontal Beam-width | 65° | |
| Impedance | 50 ohms | |
| Max. Input Power | 200 Watts | |

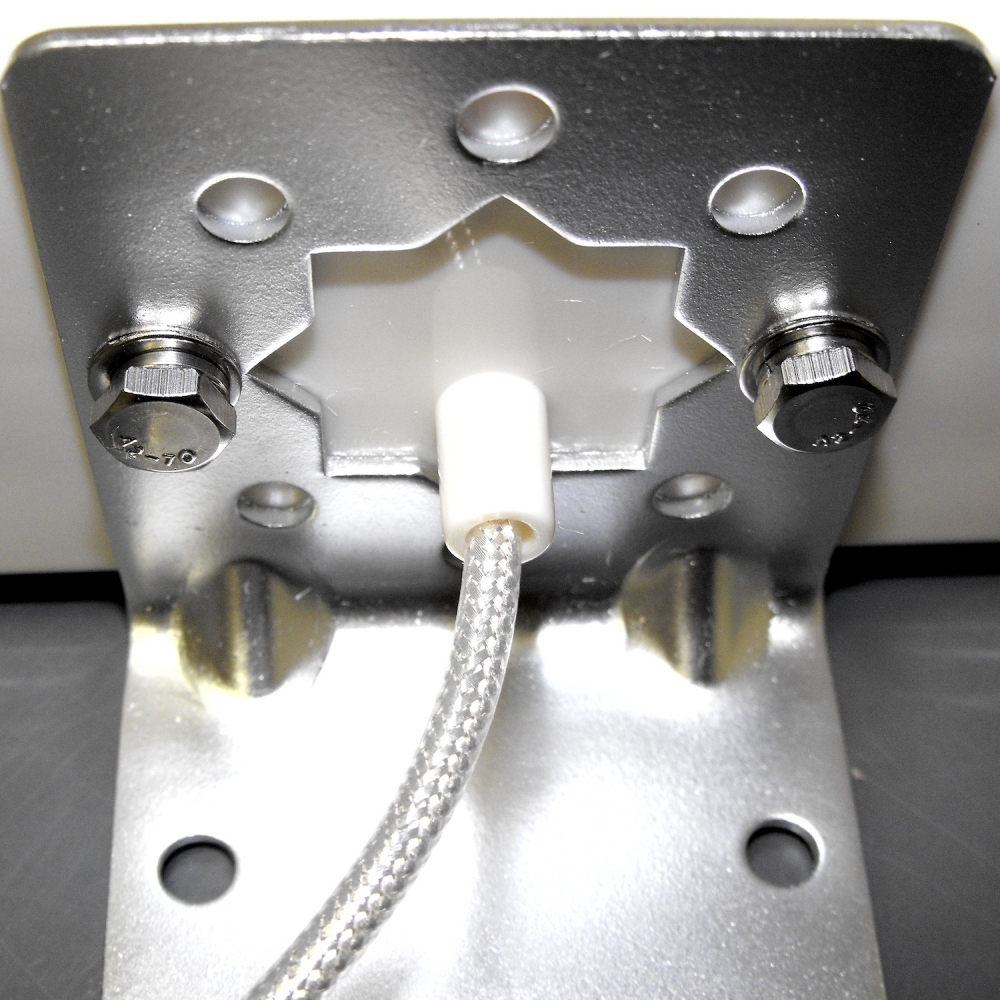

| Connector / Coax | N Female / RG142 Coax | |
| VSWR | ≤ 1.4:1 avg | |
| Weight | 350g (0.94 lbs) | |

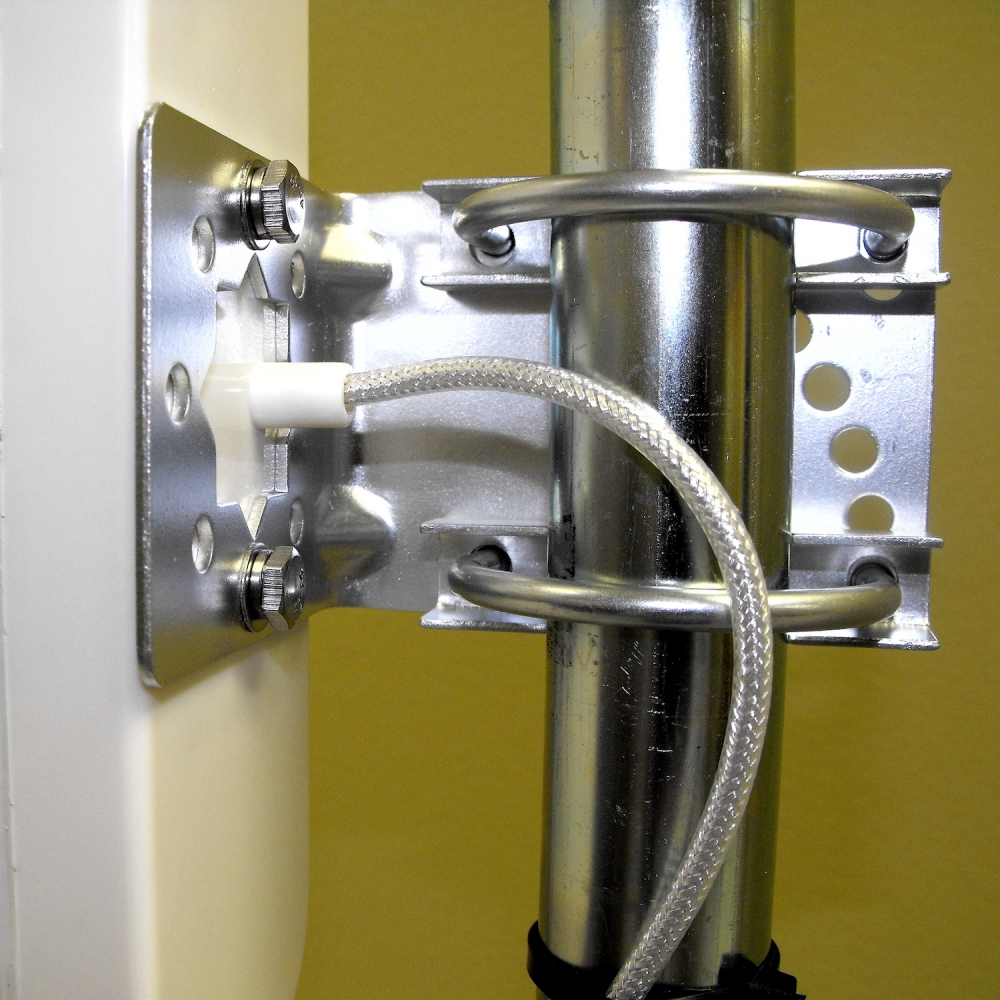

| Mounting | 2″ diameter mast | |
| Dimensions | 330 x 215 x 65 mm | |
| (12.6″ x 8.46″ x 2.56″) | ||
